Feature:
Structure: frame, press cage +screw shaft, hand crank , Heat by alchole or oil lighting.
Character: Personal hand use; Easy operate; Working continuely; Easy clean; Multi function raw material using, as peanut oil, juicer etc.
Applicant: For most of the oil is greater than 25% of oil crops, such as peanuts, sunflower, rapeseed, sesame, walnut, dried coconut, pumpkin seeds, and so on.
Size: 350*60*316.5mm for products, 325*255*95mm for giftbox
Material: screw shaft , press cage tube 20, Frame Q235 steel
Package: Giftbox and foam
Color: Stainless steel

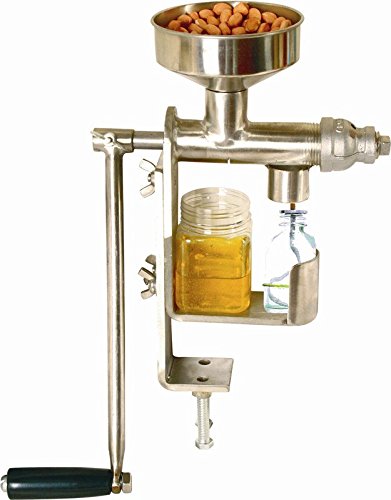

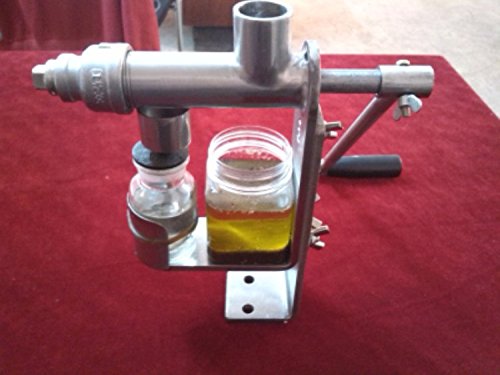

How to Assemble Our Homemade Hand Crank Oil Press

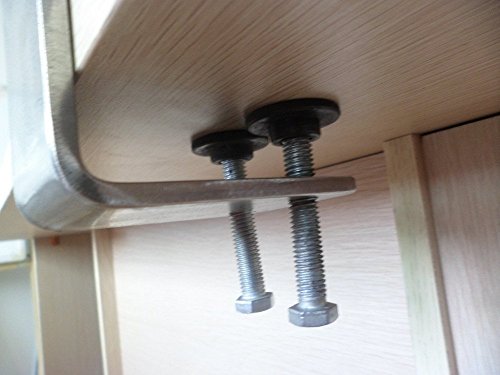

1. Before operation please fix the frame and make sure crank can be turned freely.
2. Lubricate washer with edible oil and insert on screw shaft from the small end.
3. Insert screw shaft in press cage.
4. Screw on press cage cap and screw on terminal adjustment bolt.
5. Attach crank arm to screw shaft and tighten the bolt. 6. Fill 80% fuel to the lamp bottle (kerosene or alcohol).
6. Pass a 15cm wick through the washer. 7.
7. Leave 0.5cm of wick outside and put the longer end in the fuel bottle. Place washer at the bottle mouth. Place the lamp under press cage. Secure the lamp with rubber band. More Assembly vedio can be found on below
Packing:
1PCS x Hand crank oil press
- Hand Crank Oil Press
- Household Stainless Steel Oil Extractor
- Personal Hand Use
- Easy operate/Easy clean
- Multi Function Raw Material Using
-
-
Watch the videos:
